Geared Elevator Machines
ZF Series Standard Features
- 150 -350 Fpm
- 1/2” and 5/8” ropes
- Brake Voltage- 110 or 198 VDC
- Total travel- 51 Meters/167 Feet
- Static load: 12,000 Kgs/26455 Lbs.
- Factory Installed Encoder- 1024 PPR
- 4 Pole
- Class F Insulation
- Dual Brakes Optional
- Available with a 5 Year Warranty
ZF-112 Features
- Sheave Shaft Load 26,000 Lbs.
- 2,000 – 7,000 Lbs. Capacity
- 31″ Machine Width

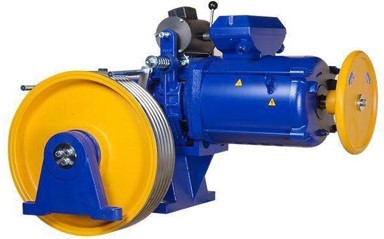

ZF-142 Features
- Sheave Shaft Load 66,000 Lbs.
- 5,000 – 12,000 Lbs. Capacity
- 35″ Machine Width

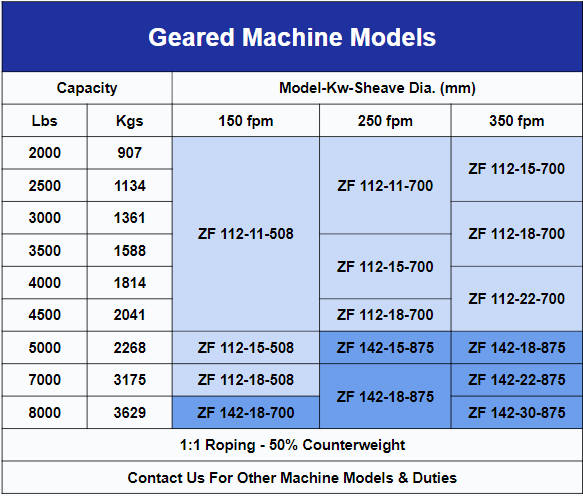

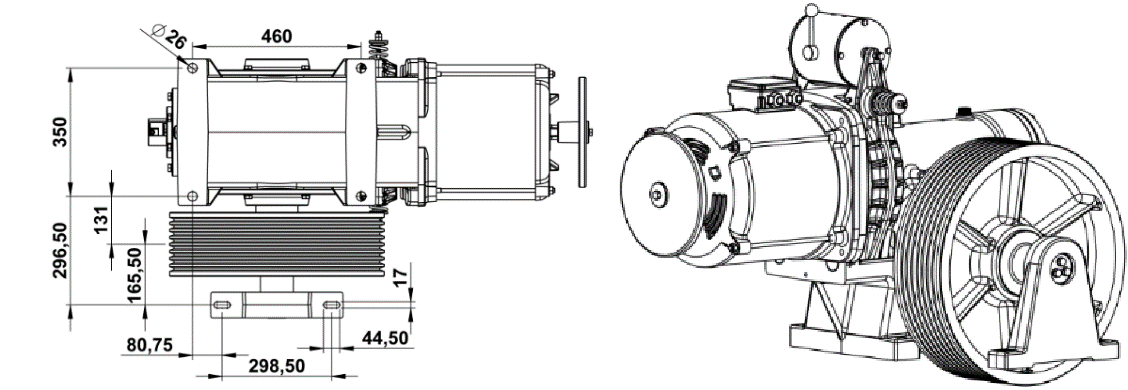

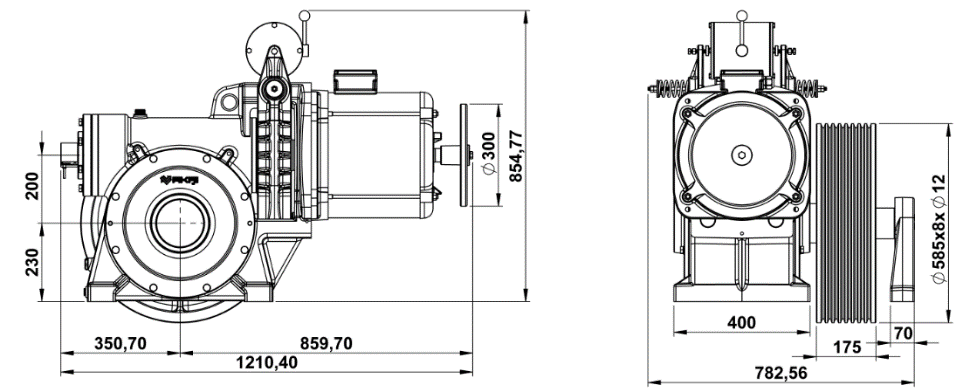

Geared Machines Technical Data
