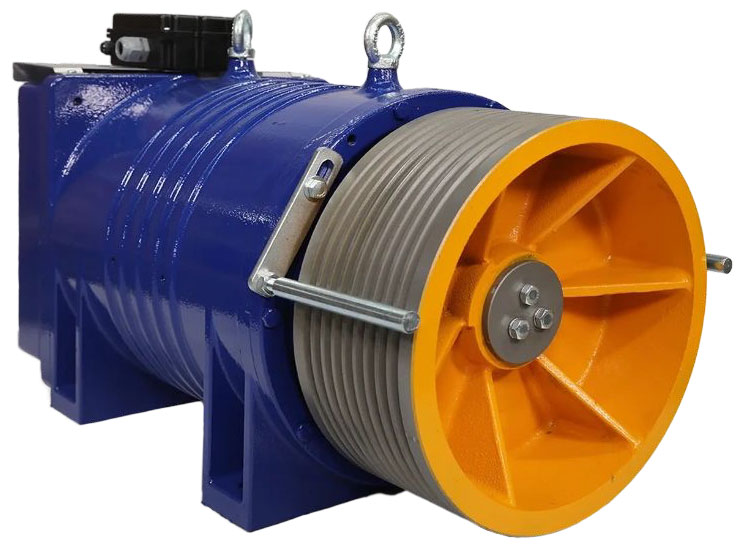

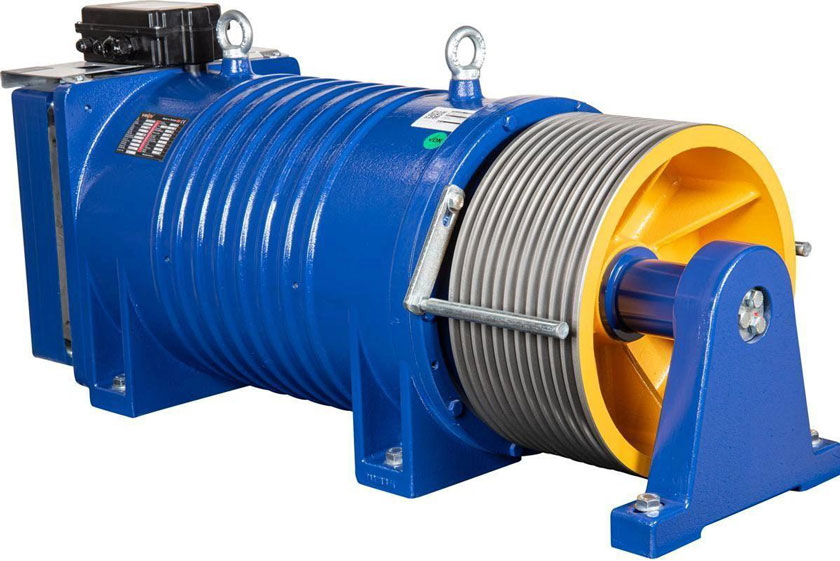

PM Gearless Machines
AK Series Standard Features
- 2:1 Roping
- 150 – 500 Fpm
- 8mm ropes
- Dual Brakes Standard
- Brake Voltage: 110 or 198 VDC
- Total travel: 51 Meters/167 Feet
- Static load: 12,000 Kgs/26455 Lbs.
- Factory Installed Encoder: Heidenhain ECN 1313
- 20 Poles
- Class F Insulation
AK2-8 Features
- Sheave Shaft Load 26,000 Lbs.
- 2,000 – 7,000 Lbs. Capacity
- 16″ Machine Width

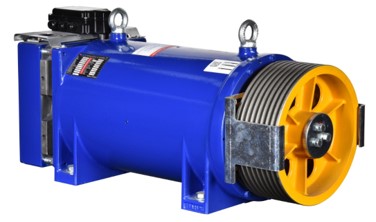

AK-6 Features
- Sheave Shaft Load 15,000 Lbs.
- 2,000 – 3,500 Lbs. Capacity
- 13″ Machine Width

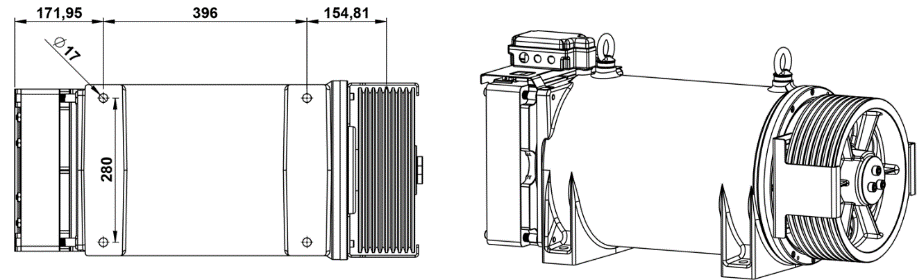

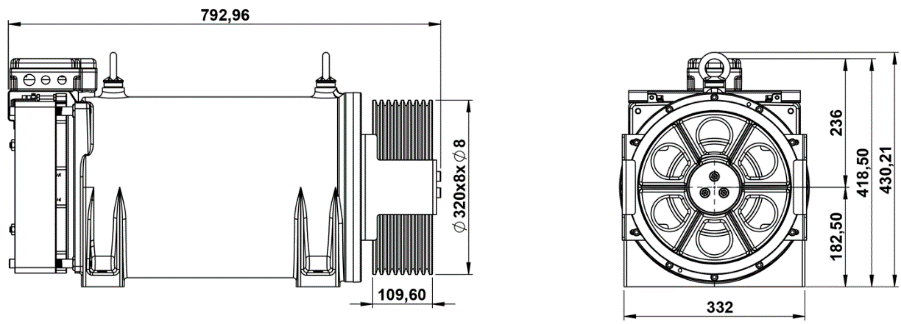

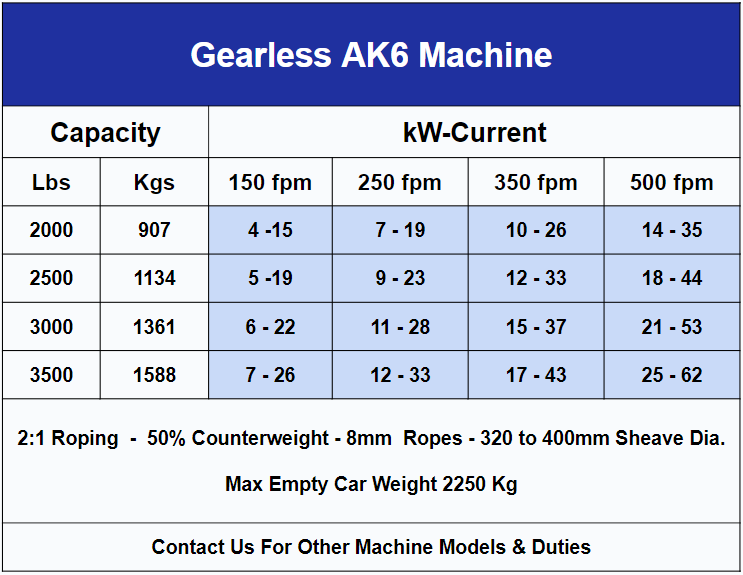

PM Gearless Machines Technical Data
